BAW L7
| L*W*H(mm) | 3493*1565*1552 |
| Drive Type | Rear-mounted rear-wheel drive |
| Front/Rear Brake Type | Disk/Drum |
| Battery type | Lithium iron phosphate |
| Body structure | 5-door, 4-seat fully loaded bodywork |
| Maximum gradient (%) | ≥20 |
| Wheelbase (mm) | 2240 |
BAW L7

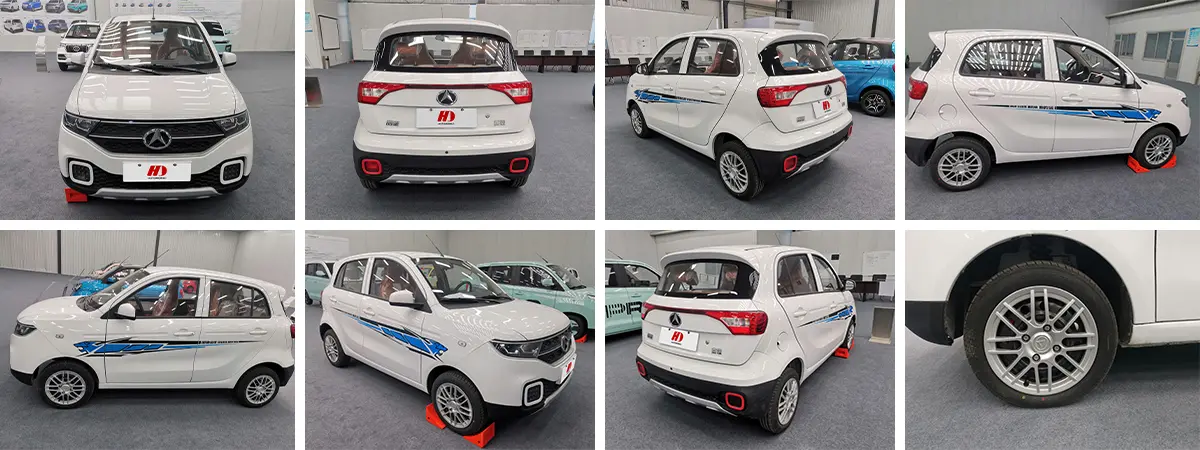

Appearance details
| Vehicle parameters | ||
| Model | Lingxian Version | Zunxiang Version |
| Body structure | 5-door, 4-seat fully loaded bodywork | |
| Dimension（mm） | 3493*1565*1552 | |
| Wheelbase（mm） | 2240 | |
| Wheelbase (front/rear) | 1360/1350 | |
| Front/Rear Suspension Type | MacPherson independent suspension/ rear trailing arm integrated rear axle | |
| Drive Type | Rear-mounted rear-wheel drive | |
| Front/Rear Brake Type | Disk/Drum | |
| Battery type | Lithium iron phosphate | |
| Power battery capacity (kw.h) | 9.6 | 13.92 |
| Rated voltage (V) | 96 | 102 |
| Battery capacity (Ah) | 100 | 136 |
| Maximum gradient (%) | ≥20 | |
| Power battery block number | 1 | 1 |
| Maximum speed (Km/h) | D gear: actual 41/indicator 50 S gear: actual 58/indicator 68 | |
| Rear axle speed ratio | 10:01 | |
| Overall mass (kg) | 700 | 720 |
| Rated power of drive motor (KW) | 13 | |
| Standard configuration | ||
| Electronic brake booster | ● | ● |
| Front seat belts | ● | ● |
| Heater | ● | ● |
| Central door lock | ● | ● |
| Four-door electric glass lift | ● | ● |
| Body-color mirrors with manual adjustment | ● | ● |
| EPS electronic power steering | 4 | 4 |
| Knob Panel | ● | ● |
| Pusher shifter | ● | ● |
| Remote control window up/down | ● | ● |
| Sun visors for driver and passenger | ● | ● |
| Passenger and Rear Passenger Safety Grips | ● | ● |
| Imitation leather seats | ● | ● |
| 165/60 R14 tires + steel wheels + wheel covers | ● | ● |
| 9-inch large screen + reverse camera | ● | ● |
| Optional configurations | ||
| Range extender body | - | - |
| 165/60 R14 tires + aluminum wheels | ○ | ○ |
| 6KW range extender system | - | - |
| Electric air conditioning | ○ | ○ |
| Multi-function steering wheel | ○ | ○ |
| Color option | Pearl White, Elegant Gray, Jazz Brown, Vibrant Green, Charming Red Set of colors: white + green, green + white | |
| Note： ●standard ○option -non The whole vehicle is well reserved for air conditioning space and lines, which can meet the after-market dealers after retrofitting air conditioning. | ||
