BAW L5
| L*W*H(mm) | 3396*1542*1558 |
| Maximum speed (km/h) | 50 |
| Maximum grade(%) | ≥20 |
| Front/rear brake type | Disc/Drum |
| Body structure | 5-door, 4-seater fully load-bearing body |
| Rated voltage (V) | 60 |
| Wheelbase (mm) | 2238 |
BAW L5

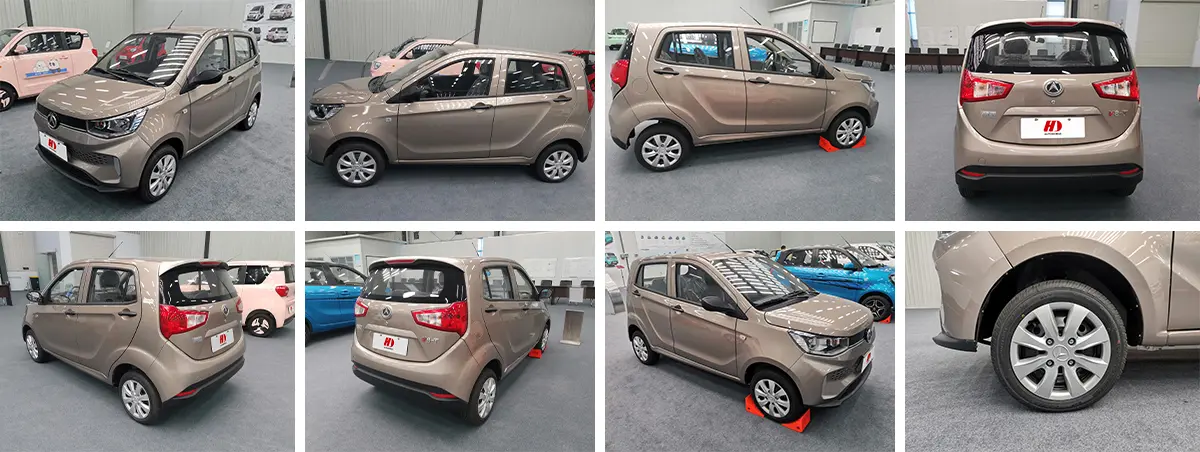

Appearance details
| Version name | Plain version | Water-cooled extended range version |
| Body structure | 5-door, 4-seater fully load-bearing body | 5-door, 4-seater fully load-bearing body |
| Length×width×height(mm) | 3396*1542*1558 | 3396*1542*1558 |
| Wheelbase (mm) | 2238 | 2238 |
| Wheelbase (front/rear) | 1300/1315 | 1300/1315 |
| Front/rear suspension type | Front MacPherson independent suspension/rear trailing arm semi-independent suspension | Front MacPherson independent suspension/rear trailing arm semi-independent suspension |
| Drive type | rear wheel drive | rear wheel drive |
| Front/rear brake type | Disc/Drum | Disc/Drum |
| Battery Type | Lead-acid maintenance-free battery (Jingjiu Battery) | Lead-acid maintenance-free battery (Jingjiu Battery) |
| Power battery capacity | 6 | 6 |
| Rated voltage (V) | 60 | 60 |
| Maximum speed (km/h) | 50 | 50 |
| Maximum grade(%) | ≥20 | ≥20 |
| Fuel tank volume (L) | / | 20 |
| Rated capacity (Ah) | 100 | 100 |
| Curb weight (kg) | 720 | 840 |
| Drive motor rated power (KW) | 3 | 5.6 |
| rear axle ratio | 12.3:1 | 12.7:1 |
| Standard configuration | ||
| Central control folding key | ● | ● |
| central door lock | ● | ● |
| Electronic brake assist | ● | ● |
| car charger | ● | ● |
| knitted seat | ● | ● |
| Four-door electric glass lift | ● | ● |
| front seat belt | ● | ● |
| control Panel | Button type | Knob type |
| Original color exterior handle | ● | ● |
| New interior (brown) | ● | ● |
| Driver's sun visor | ● | ● |
| heater | ● | ● |
| Original color rearview mirror | ● | ● |
| 145/70 R12 tires + steel rims (without wheel covers) | ● | - |
| 155/65 R13 tires + steel rims + wheel covers | ◎ | ● |
| EPS electronic power steering (without locking) | ◎ | ● |
| 9 inch floating screen | - | ● |
| Optional | ||
| luggage rack | - | ◎ |
| Rearview mirrors in the same color as the body + exterior handles in the same color as the body | ◎ | ◎ |
| 5KW air-cooled range extender | ◎ | - |
| Tianneng battery pack | ◎ | ◎ |
| Note 1: ●Standard configuration ◎Optional configuration - No such configuration | ||
